8M 56W Solar Street Light from China
EXW/FOB/CNF/CIF
TT/Western Union
Guangzhou,China
SLD
By carton, Exported standard packing
Available
Low-cost installation. No trenching, no heavy cable, quick and easy installation anywhere. Ultra-low maintenance and long product life. 25 years warranty on solar panels and LED/Induction lighting fixture is rated for 60,000 hours of maintenance free ope

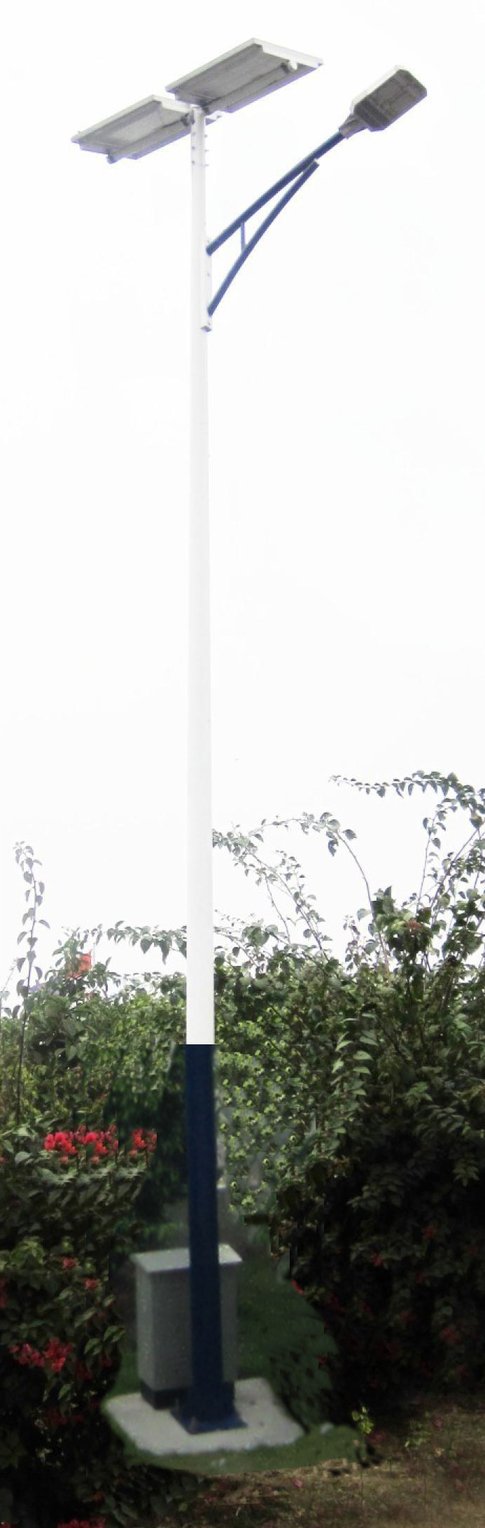

solar street light pole withautomatic solar street light controller SLD-SL-101 8M 56W

solar street light pole made of high  strength 235 steel, hot dip galvarnized and powder coated , anti-rust ,anticorrosion ,anti-stong wind 120km/h. Accessories including  base shift and solar panel bracket

High scientific and technological content solar pv led street light core parts is the solar controller. The engineer will set the controller with time switch. The solar pv led street light will turns into different working mode according to your requirement in 24 hours. In that case, we successfully prolong the lifespan of the solar pv led street light. This street light is very easy to install, and convenient to maintain.

Technical Parameter



Commodity

Specification

1.solar panel

120W/ 17.5V x2ps  Poly solar panel, more than 25 years lifespan

2.LED lamp


60W/12V,   Lumen:6600lm, 90-100lm/W, 60W to achieve 37LUX at 8m high, ≥50000 hours lifespan

3.Pole

8M   cylindrical, including lamp arm and bracket, hot dip galvanization (85μm) and   spraying power. 20 years lifespan

4.gel battery

120AH/12V x2pc,   deep cycle, maintenance free , 3-5 years lifespan

5.Controller

10A/12V/24V,   optical & time control(Germany Phocos) water proof: IP68, 8-10years   lifespan

6.PVC Battery box

For 120ah*2pcs   battery, 10-15years lifespan

7. Working Time

10-12hours/day, 3   ~ 4 cloudy or rainy days backup

8. Working Temperature

-30°C~~50°C

9. Solar panel  frame

angle Iron,   hot dip galvanized type, plastic-coating / painting

10. Wind Resistance

80mph (Please   consult with us for higher wind resistant models.)


The above configuration can be adjustable according to your requirement.

Product Details



What are the main parts of solar pv led street light?
1. Solar panel

Solar panel of solar street light with battery backup must be in good material, because it has to provide energy for the lamp for a whole night, and it has to be exposed to the sun and rain.




2. LED  Chip
High lumen LED chip is designed for the solar pv led street light, because we know it is very important for you to get as much as brightness with certain power.

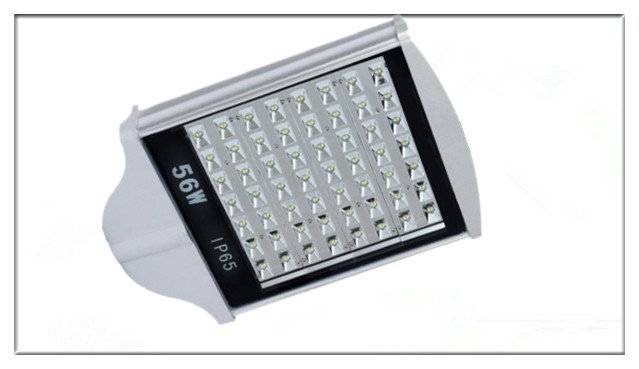

3. LED lamp
Outdoor solar street light fixture must be made of superior materials, because the it has to be strong enough to stand the awful conditions.

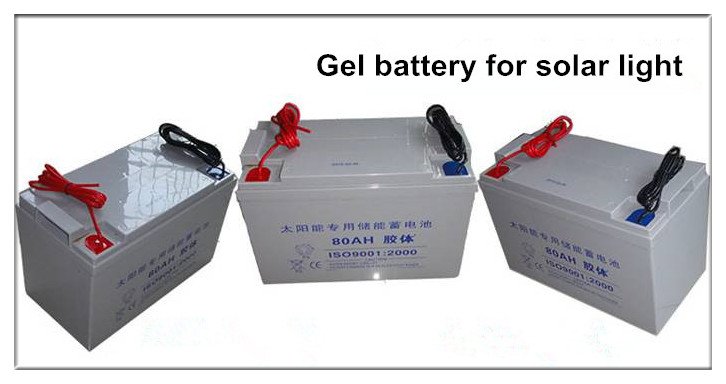

4. Battery
We choose special gel battery (lead acid battery) for 12v solar 30w led street light, maintanence free, 3-5 years lifespan. Working temperature from -33℃ to 55℃.




5. Pole
After welding, cutting, grinding, polishing, and spraying, solar pv led street light poles will not fade within 8 years and no rust within 15 years.




6. Other accessories
The accessories includes MPPT solar charge controller which will automatically turns on and off the outdoor solar street light according to your requirement, without human management, and cables, battery box to protect the battery, and anchor to fixed underground.






There are different watts solar street lights:
