SLD-SL-320 20W All In One solar streetlight
EXW/FOB/CNF/CIF
TT/Western Union
Guangzhou,China
SLD
By carton, Exported standard packing
Available
Safety and reliability,Three years warranty,with CE,ROHS and IP65 certificate,Rust-proof, dustproof and waterproof.

 Trade assurance supplier for led solar street light SLD-SL-320 20W

Our SMD all-in-one solar street light  20 Watt (2200-2400 Lumen) LED lamps have very competitive prices.

Sold as a complete system. This compact, unique, easy to install LED area light can be pole, post or wall mounted. Automatically illuminates at dusk at 33% brightness and reverts to 100% brightness when motion is detected.It consists of a discrete solar panel installed on the top on the fixture, with a lithium battery installed inside, and a cluster of powerful white COB/LEDs on the under-side of the unit. Also on the under-side of the light is a motion sensor. When it detects activity within the light switches to full brightness mode and when the area is free of activity it will revert back to its ambient mode at approximately 1/3rd power. This all in one light fixture may be a good choice for windy locations based on is compact design. The large version with its 1350/2400 Lumen output makes it the most powerful LED motion detector light on the market .They are suitable for parks,gardens,yard and squres and so on.What a excellent led solar light is!

Most of our customers said that our 12v  all in one led solar street light are very popular with their country,as our all in one solar street light has very competitive prices and very high quality.We sure about that if you buy our solar street light all in one


Product Data


Model:  SLD-SL-312  SLD-SL-315  SLD-SL-320
Solar Panel Max Power:  18V/25W  (high efficiency imported silicon solar   cell)  18V/36W  (high efficiency imported silicon solar   cell)  18V/45W  (high efficiency imported silicon solar   cell)
Solar Panel Life Time  25   years
Battery Type  lithium   battery(Life time 5 years)
Battery Capacity   12V   12AH   12V 15AH  12V   18AH
LED Max Power  12W  15W   20W
Led Chip Brand  CREE   from U.S.A with high brightness
Lumen (LM)  1350-1500lm  1900-2100lm  2200-2400lm
LED Life Time  50000hours
Lighting Viewing Angle  90°×126°
Charge Time(by sun):  6-7hours   (with enough strong shine)
Discharge Time  more   than 20 hours (saving mode)
Working TEMP( ℃ )   -20~+60
CCT (k)  5500k-6000k
Mounting Height(m):  3-4m  4-5m  6-7m
Space between   light(m):  15-20m  15-25m  15-25m
Lamps Material   aluminium   alloy
Certificate:  ISO/CE   / ROHS / IP65
Warranty Period:  3years

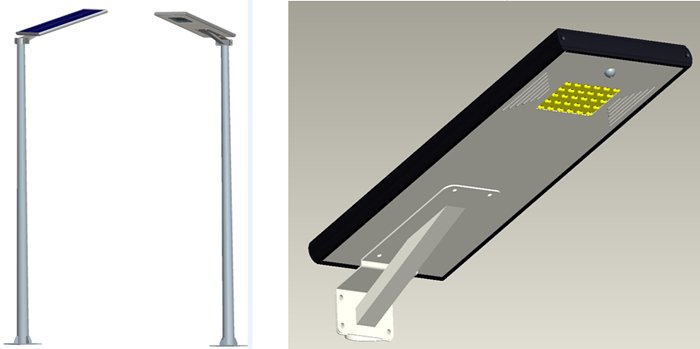

The design drawing of led street light:

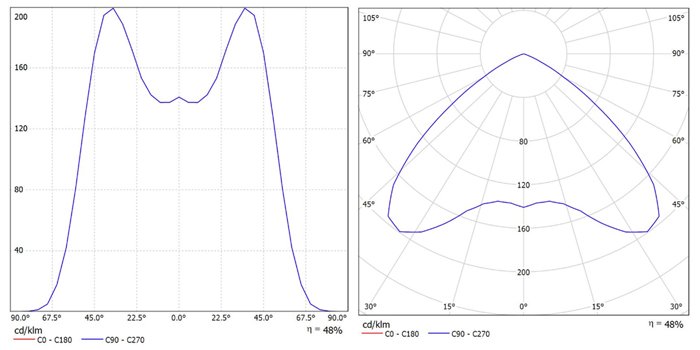

Illumination data of integrated solar street light:


Performance

All-in-one design.
Weather rating is I.P. 65
Ideal operating temperature charging range is 0 deg C. to +60 deg C. (-32 deg F. to +140 deg F.).
Ideal operating temperature discharging range is -20 deg C. to +60 deg C. (-4 deg F. to +140 deg F.).
Ideal storage temperature range is 0 deg C. to +45 deg C. (-32 deg F. to +113 deg F.).
Anti-tamper (theft resistant) stainless steel hardware included for pole clamp.
Anti-tamper bolt install/release tool included.

Light Fixture

A passive infra-red motion sensor is built into the fixture on all models.
The detection range will vary depending upon a few factors including fixture mounting height, local ambient temperature etc.
All the lights can illuminate continuously for up to 24 hours in ambient mode or up to 12 hours in full brightness mode.
All SMD/LED's have a color temperature of 6000-6500k.
Zero light pollution.
The 12w lamp's pole would be 3-4meters,the distance of pole would be 12-15 meters,and the lighting area is 12*4meters.
The 15w lamp would match with 4-5meters pole,the distance between of two pole would be 15-18meters,and the lighting area is 14*7meters around.
As for 20w lamp,it suitable for 4-5meters pole,the distance between of two pole we would suggest 15-20meters ,and the lighting area is 15*9meters.



Features & Advantages


Features:
•Patent pending integrated design,solar powered outdoor lighting.
•Easy installation. No cable needed.
•Using LifePO4 battery to prolong product life and protect environment.
•Light output can be adjusted automatically by a built-in infrared sensor, pedestrians closing light working bright model, after leaving from the effective sensor area, bright model will last for one minute, and then become dim model.
•Modularity design. Easy assemble and maintenance.
•Compact volume and light weight design saves freight cost and installation cost
•Rust-proof, dustproof and waterproof.
•Three years warranty.


Advantages:
1. Integration design, easy to carry, put solar panel, LED lamp, battery and controller all in one, don't need any cable,;
2. Installation is very convenient, use iron pole, wood pole, bamboo pole, plastic pole, wall, etc will be no problem, it will can reduce a lot of cost;
3. Using high capacity and long life of lithium iron phosphate battery,service life 5 years, can resist high temperature  and low temperature, can ensure the long service life of the whole product;
4. Easy to maintain, the battery and light are the direct inserted & pluck type, can complete the main maintain by yourself in the future when  the battery or light source need to be replaced, don't need a professional personage to do maintenance.
5.Integrated solar street light  equipped a infrared motion sensor to intelligently control the brightness,  when the passerby close to the light , it work in full power mode ,the lamp become bright , after leaving ,the lamp become half power working mode , the lamp become dim ,  so that to saving energy
6. Use alloy materials, waterproof, strong and durable.
7. With CE, ROHS and IP65 certificate for our all in one solar street light.

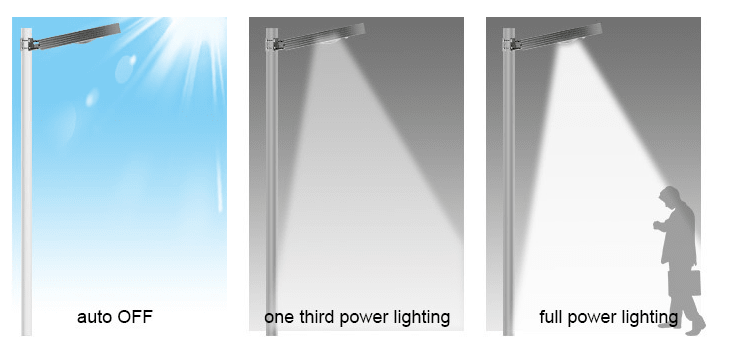

Working Mode



The working model of all in one solar led light:
The solar panel converts turns sunlight into electricity and stored in Li-Fe battery via controller.The COB LED light will work at night automatically under the light sensor control,and provide light for different areas.The LED light will be at saving energy mode(about 30% of full power) normally when there is no motion.However,it will be switched to full power mode when PIR sensor detects motion.The full power mode will last about 30s ,and after 30s it will be switch back to saving power mode until new motion detected.It can be also pre-programmed by time schedule without motion sensor as well.That would the be firt one hour at 30% illumination,second 4 hours at full brightness,and the rest hours(befor the sun rise) at 30% illumination.

Installation for solar light street:

•Install fuse first if present before use (remove any film under fuse)
• Tool supplied to tighten security bolts provided
• Face solar panel as much towards the north as possible to maximize sun exposure (and therefore battery charge.)
•The trees around the solar lamps shall not affect the lighting of the lamps, otherwise, prune the trees.
•It is strongly recommended not to set high and large shelters in front of lamps to avoid the sunlight.






Product Details





DETALI 1
EXCELLENT LED CHIP
Imported LED chip,less heat dissipation,excellent performance.


DETAIL 2
HIGH QUALITY ALLUMINUM ALLOY
Durable aluminum,power coated for all in one solar led light.It is easy for installing,anti-corrosion,rust prevention.



DETAIL 3

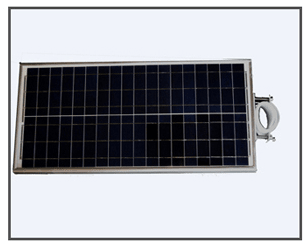

SOLAR ENERGY
The solar panel turns the solar energy into DC electricity in battery during the day time,and when the night comes,the battery will light up the lamps.


DETAIL 4
HUMAN BODY SENSOR
Human body sensor will detect the passagers,when passagers walk away from the lamp,after 1 mins,the lamp will turn to dimmode.And when another passager walking by,it will automatically turns bright mode again.In that way,we save energy perfectly by our integrated solar street light.





Packing Details

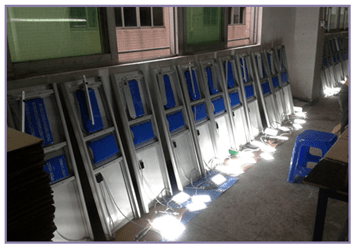

100% TEST
Every our all in one solar led street light is 100% test before delivery,in that way,the repair rate is rapidly reduced.


Carefully Packing

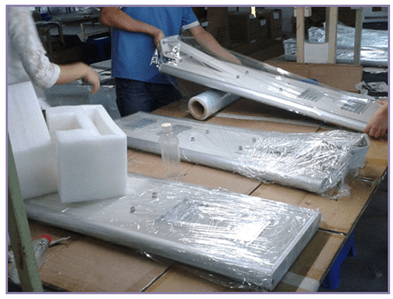

Every lamp was carefully sealed with film paper,in order to protect form dust and humidity.


Professional Packing
Every all in one solar street light is packed by professional packing team.The carton box is special design for integrated solar street light.

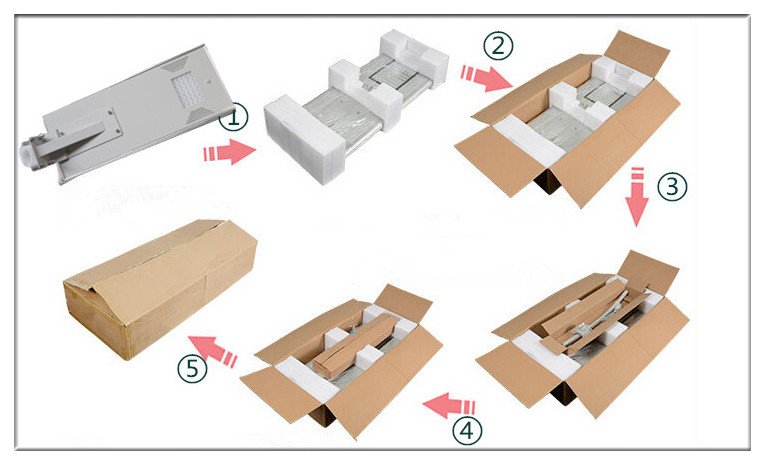

More details of integrated solar street light's packing please check the below picture and table:


Model:  SLD-SL-312  SLD-SL-315  SLD-SL-320
Unit Size:  795*280*43mm  895*360*43mm  960*360*43mm
N.W:  8.5kg  9.7kg  16.2 kg
Inner Box:  /
Carton Size:  860*345*210mm  945*420*210mm  1010*410*210 mm
Q'ty/ctn:  1set/ctn
GW.for Carton:  9.5   kg  10.7kg  17.5kg
20GP Container:  350   set  340 set  310 set
40GP Container:  700   set  660 set  610 set
