2019 Newest Quality guranteed Solar Powered Led Street Light with smart control system
EXW/FOB/CNF/CIF
TT/Western Union
Guangzhou,China
LINGDA
Exported standard packing
Available
2019 Newest Quality guranteed Solar Powered Led Street Light with smart control system will help you win more municipal project of highway lighting

 2019 Newest Quality guranteed Solar Powered Led Street Light with smart control system


Why Solar Led Street Light?

As having said that , we always aim to provide unparrelleled solar street led light for municipal road lighting project .

The mission of our brilliant team is keeping an eye on research and development of new products, so we may best support our customers to help win their market and projects.

With the development of LED technology and batteries, the volume of the lighting source or batteries has been greatly reduced. This makes it possible for the street lighting luminaires to integrate light source, sensor, solar panel and battery into one. Additionally, its installation and transportation costs are reduced dramatically. With the increasing awareness of environmental protection, global warming and the energy crisis, more and more countries, especially countries and governments with long hours of sunshine, gradually began to pay attention to the use of solar energy. Thus, more and more municipal projects, real estate and building material markets show an ever-increasing need of our solar products.

Why SSL Smart All In One Solar Street Light?

1.No need of cable installation or special light pole, functional components modular design. Installation, maintenance and replacement is convenient and quick .

2. High efficiency solar panel. High transfer rate, charge full quickly.

3. Using high capacity LiFepo4 battery, high energy, long life, light weight, green and environmental protection, do not produce any harmful substances.

4. Using LED lighting source, no diffuse reflection effect, high light efficiency. Coupled with the unique secondary optical design, exposures to the wider region, This achieve energy saving again to improve the efficiency of light. And the LED light source has a long service life, high luminous efficiency; the advantage of light color uniform, is also a best product of environmental protection.

5. The Shell adopts aluminum, which have a advantage of light weight, corrosion resistance, wear resistance and other characteristics. Ensuring product to adapt to the humid and hydrochloric acid environment.

6. Control system adopts industrial-grade components manufacturing, which can adapt to all kinds of wicked environment and ensure the street light normally on.

7.Patent all in one design with CE,RoHs,IP65 certificates .

8.Adjustable angle , it can satisfy with different angle installing .

9.With smart control system.



Smart Control System ( Optional function)

Intelliginet controlling sytem (opitional ) provided with link-able Communication between each Solar street Light that can be

accessed via ZIGBEE and GPRS. The users can remotely operate and monitor performance of each street light.  And also

change the lighting operation profile and adjust the bightness of each Solar led light.


Through the solar street light intelligent management systems and wireless control module on the street unified management,

 to achieve the lighting remote monitoring , real-time monitoring , intelligent control , energy saving performance







Application

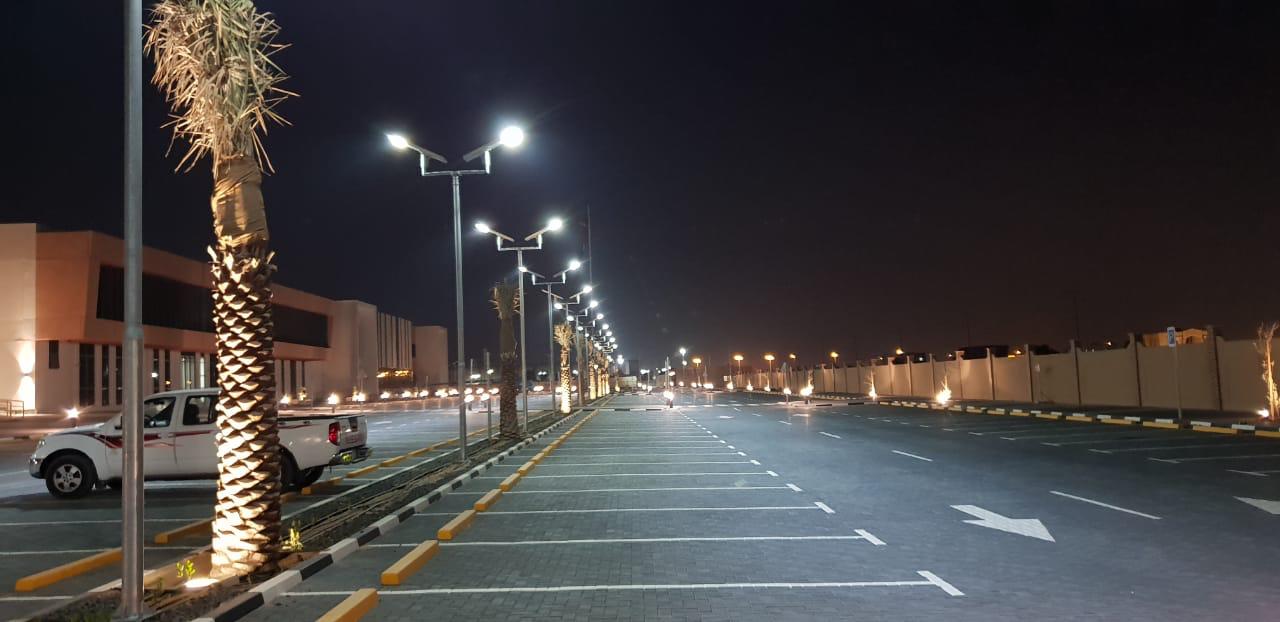

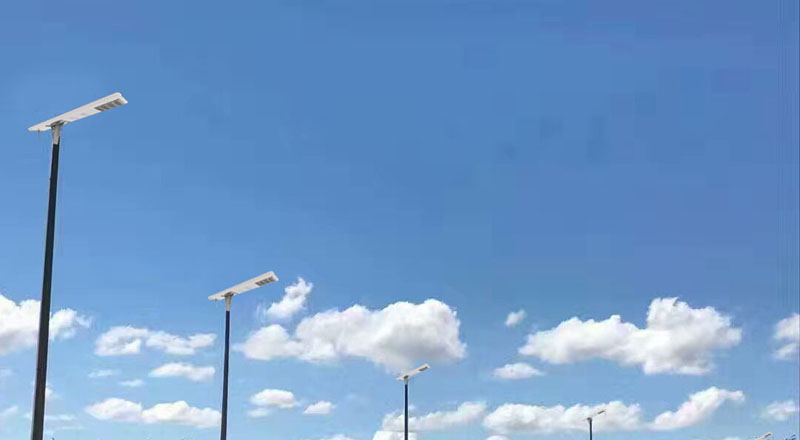

For small streets, parking lots, arenas, public spaces, yards, open areas and other roadway lighting etc.



Product features

1. Auto ON/OFF +Time dimming +Intelligent control system(Optional)

2.Super brightness5050 LED chip

3.High quality LiFePO4 battery

4.High efficiency mono solar panel

5.Professional lighting distribution

6.Patented optical lens



 Specification

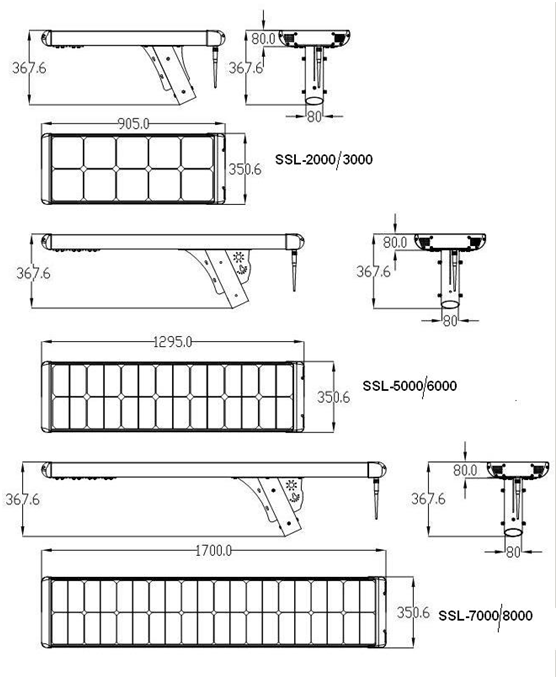

1. Dimension





2. Technical Data

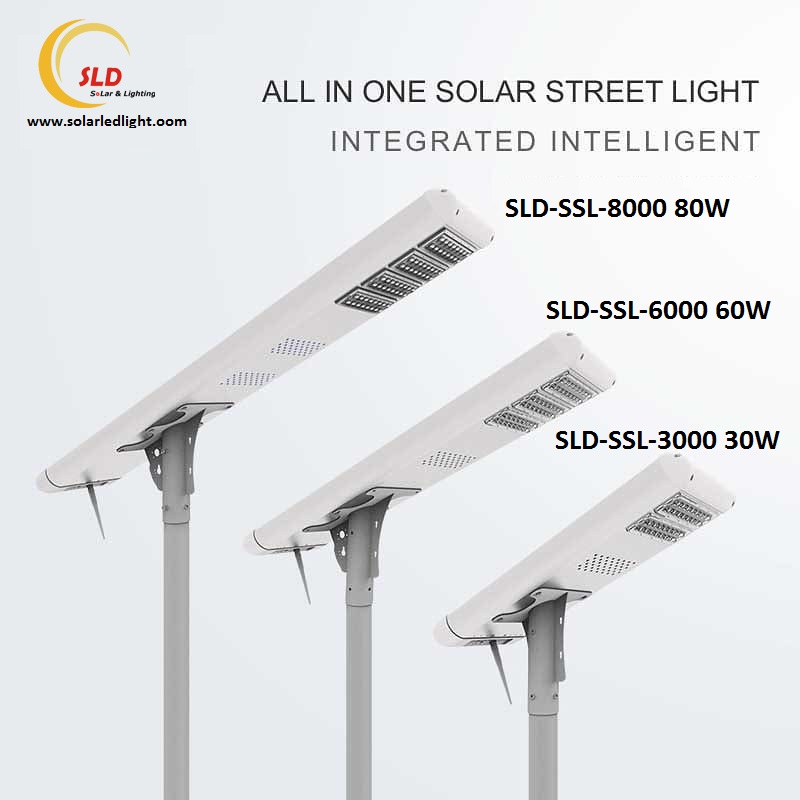

Model

SLD-SSL-3000 /6000 /8000

PV   Module

 50W /90W 120W mono

Life   time

25years( The power attenuation of each year is around 1%)

LED   Source

3300/ 6600/8800LM

LED chip

5050 LED

viewing   Angel

70°*140°

Color   Temperature

3000K-6500K Typical value: 5500K-6000K

Color   rendering index

70

Life   time

5years

Battery   Tape

Lithium LiFePo4    battery

Battery Capacity

230WH/423WH/768WH

Battery   life time

 (5-8years)

MPPT charge controller

including wireless communication module (please see the       Communication topology below )

Timing mode

1Hr50% ,4Hr100%,3Hr50%,4Hr25%.

Circuit   Protection

Overcharge, discharge, short circuit, open load, lightning       protection and other functions

Life   time

5-8years

Charging   Time (STC)

6-8Hours(With STC)

Certificate

CEROSHIP65

Working   Temperature

-20~+70(When the temperature is below -10,derating use  )

Storage   Temperature

0~45

Protection   Grade

IP67

Dimension   Size(mm)

L905*W350*H80/   L1285*W350*H80  /L1700*W350*H80

Installation   Height

5m to 10m light pole

Installation Diameter

<80mm

Pole distanc of Installation

 20m to25m

Product Details

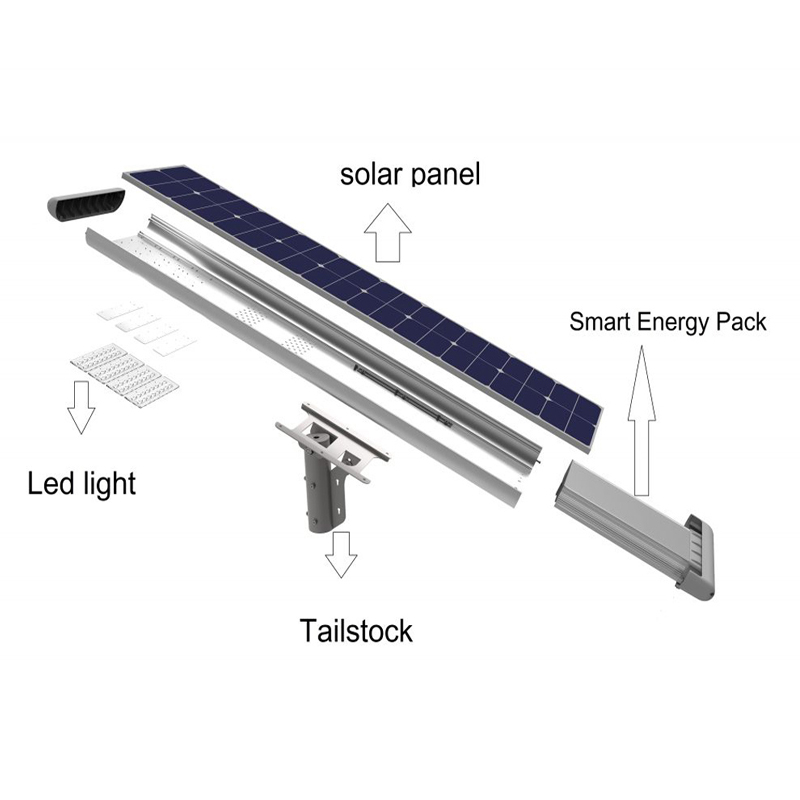

 Patent all in one design , No need of cable installation or special light pole, functional components modular design. Installation, maintenance and replacement is convenient and quick .

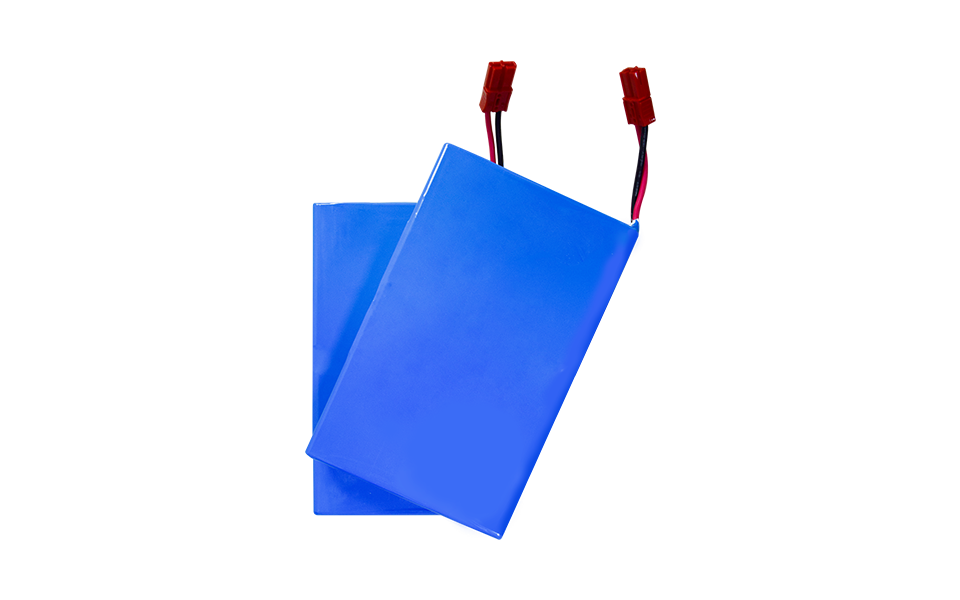

 LiFePO4 battery : more than 2000 cycles , long lifespan, up to 8 years  high energy, long life, light weight, green and environmental protection, do not produce any harmful substances.

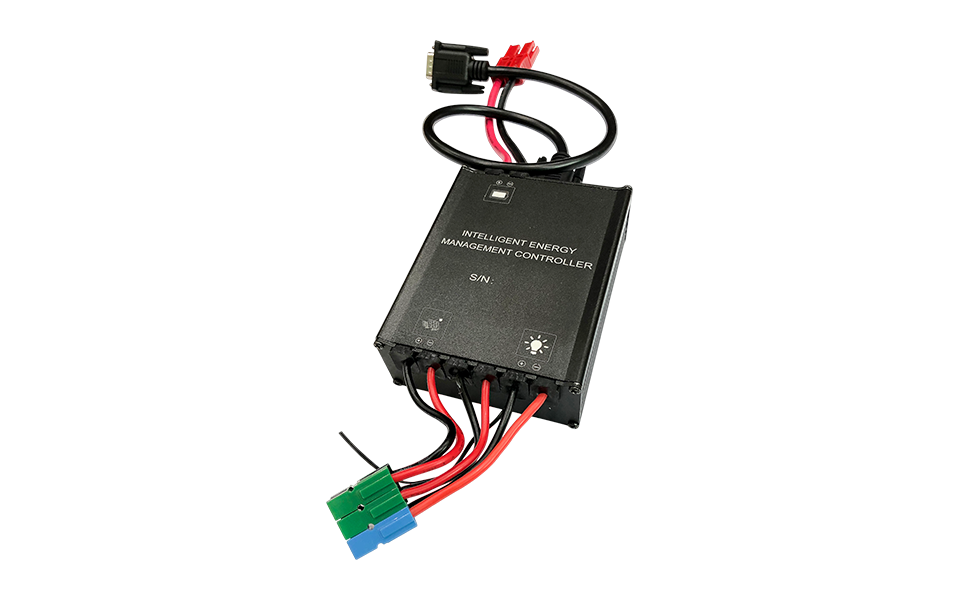

 Intelligent MPPT controller : 99% tracking efficiency and 98% charging efficiency .  Control system adopts industrial-grade components manufacturing, which can adapt to all kinds of wicked environment and ensure the street light normally on.


 High efficiency LED chip :using LG, Cree, Nicha , Philips etc, more than 180lm/W.  no diffuse reflection effect, high light efficiency. Coupled with the unique secondary optical design, exposures to the wider region, This achieve energy saving again to improve the efficiency of light. And the LED light source has a long service life, high luminous efficiency; the advantage of light color uniform, is also a best product of environmental protection.

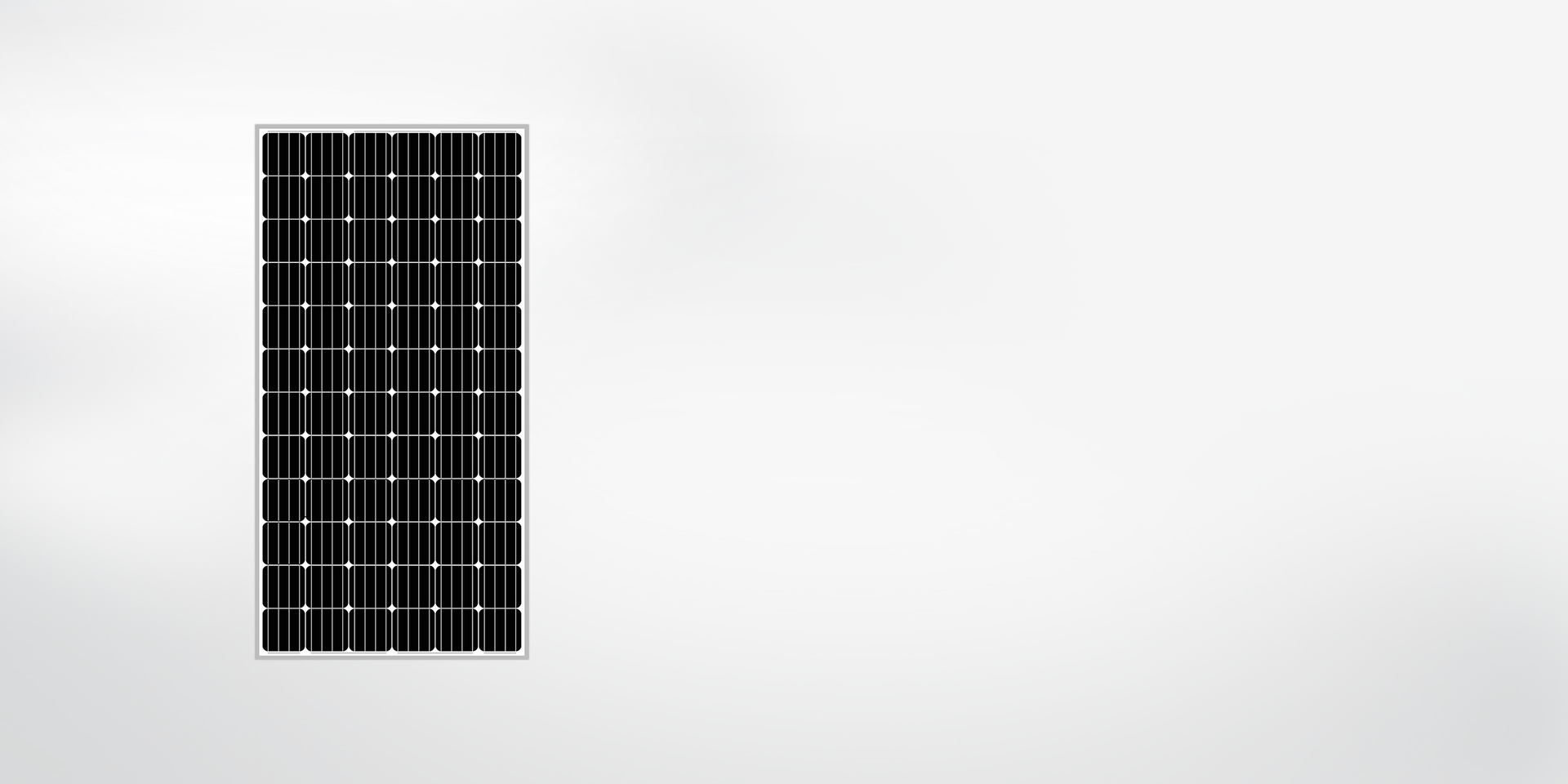

High efficiency solar panel. High transfer rate, charge full quickly.

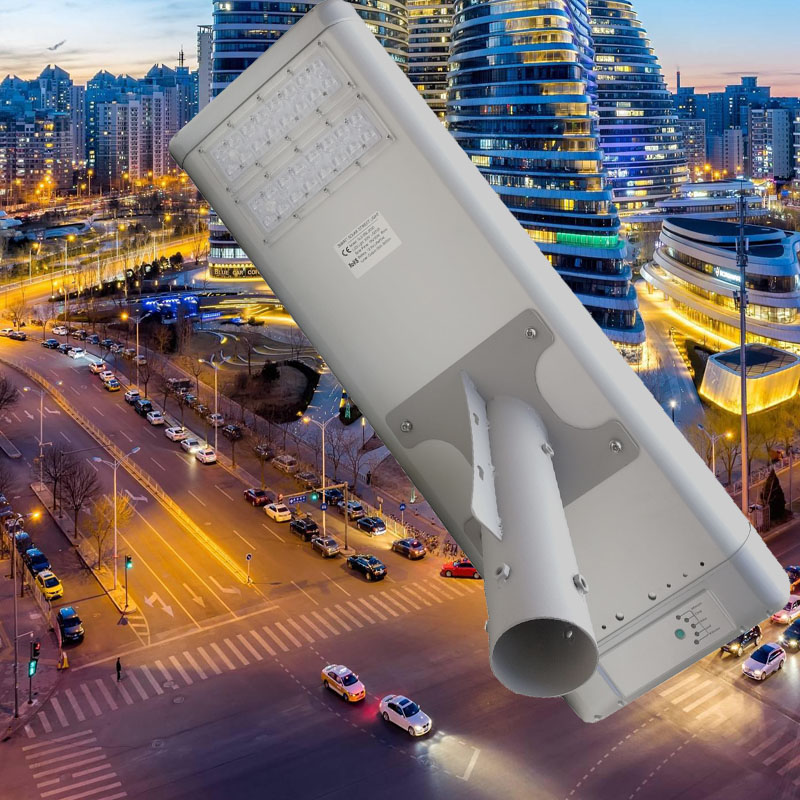

Adjustable angle bracket, it can satisfy with different angle installing angle range 90°x360°

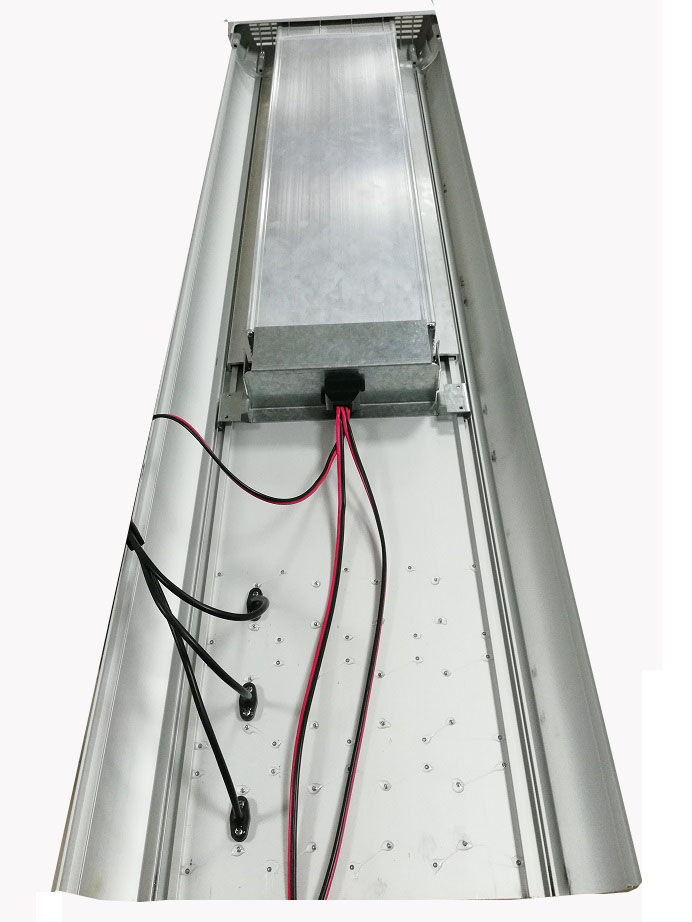

 Wholeset Aluminum Profile,   which have a advantage of light weight, corrosion resistance, wear resistance and other characteristics. Ensuring product to adapt to the humid and hydrochloric acid environment.

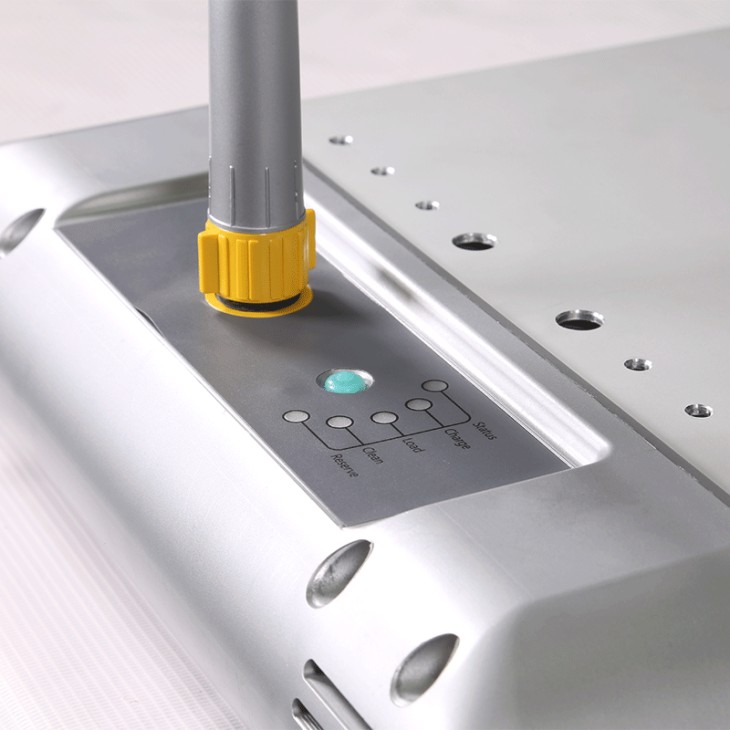

Smart energy pack , drawer type design and slidable,    led indicator displaying work status

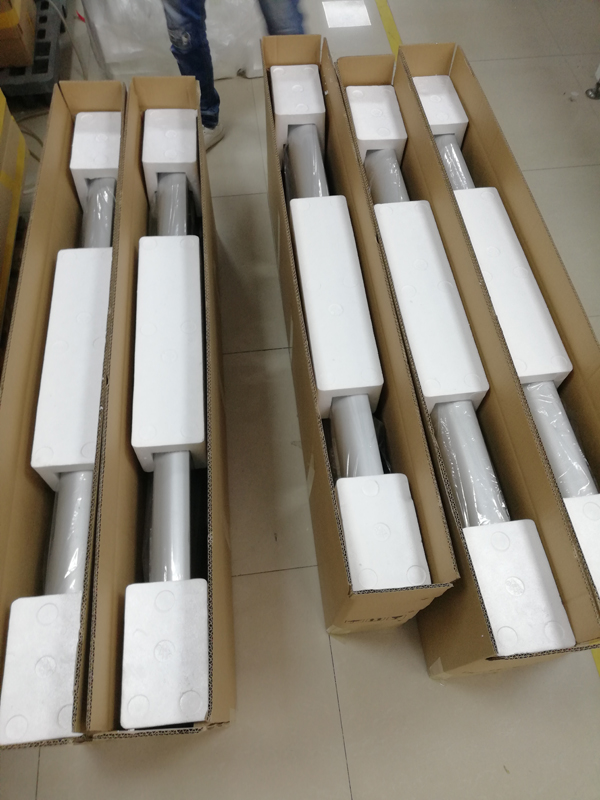

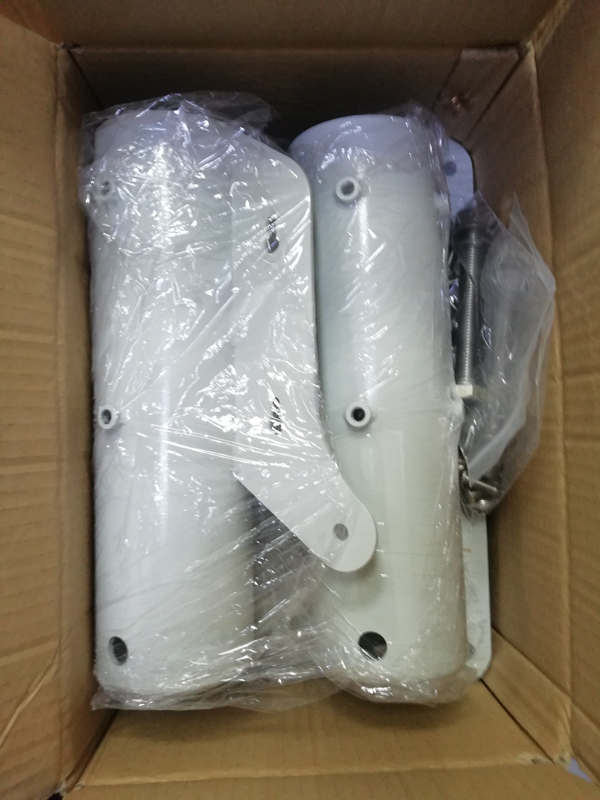

Packing & Delivery

SSL3000Packing Size985*420*150mm   (1pc lamp body)
    370*310*305mm(2 sets  Parts  )
New/Gross   weight 14kg/16kg
QTY/CBM12pcs/CBM  (0.08CBM/set)QTY/20GP   /40HQ480pcs/1170pcs
SSL6000Packing   Size1375*420*150mm(1pc   lamp body) 370*310*305mm(2 sets    Parts  )New/Gross   weight 19kg/21kg
QTY/CBM10pcs/CBM  (0.105CBM/set)QTY/20GP   /40HQ350pcs/850pcs
SSL8000Packing   Size1780*420*150mm(1pc   lamp body) 370*310*305mm (2 sets    Parts  )New/Gross   weight 19kg/21kg
QTY/CBM7pcs/CBM  (0.137CBM/set)QTY/20GP   /40HQ280pcs/680pcs









Quality Control

1. Components testing

All the components passed the strict test before assemble .Connecting the battery ,controller and led light module to work  24hours  , so that to assure the solar led street light system in good situation.



2. Finished Product Inspection

After assembling ,all the finished  solar powered led street lights will be turn on to see the work status, and make sure all the components connected well during assemble process .



3. Apperance Inspection

 Clean the dirt on the surface of solar streetlights to make sure solar lights looks beautiful




 If you're looking for the high brightness hyperion series led solar parking lot lights for sale, LINGDA NEW ENERGY (SLD), as one of the leading China manufacturers and suppliers, must be your best choice. Welcome to buy the quality solar products from our factory, and the customized service is also available.
