SLD-HBU-200W-A LED High Bay Light UFO for Warehouse Lighting
Home  > Products  > LED High Bay Light  >  SLD-HBU-200W-A LED High Bay Light UFO for Warehouse Lighting
SLD-HBU-200W-A LED High Bay Light UFO for Warehouse Lighting
EXW/FOB/CNF/CIF
TT/Western Union
Guangzhou,China
LINGDA
Exported standard packing
Available
UFO LED High Bay Light for Warehouse Lighting



SLD-HBU-200W-A  UFO LED High Bay Light



Application:

Warehouse Lighting, Factory Lighting, Industrial Lighting

 Garage Lighting, Workshop Lighting

 Outdoor Area Lighting, High Mast Lighting

Features:

1、  High efficiency out put , 140 lm/w
2、  Imported high brightness chip,quake-proof and shockproof;
3、 thermal radiation free、stable and safe、reliable、long life;
4、 High CRI,color temperature is optional;
5,   Quickly reaction, light on at full luminous flux flashily

6,  lamp housing: 1060 aluminum alloy plate with black paint, the thermal conductivity of 1060 aluminum alloy plate is better than other metal plates,

7. 5 years guarantee

8.CE&ROHS Approved

Product Details

Model

SLD-HBU-200W-A

LED driver

Meanwell  HBG-240

Warranty

5years

Light source

PHILIPS SMD 3030 LED

Quantity

252 PCS

Efficiency

140 LM/W

Power ratting

200±5W

luminous flux

28000LM

Size

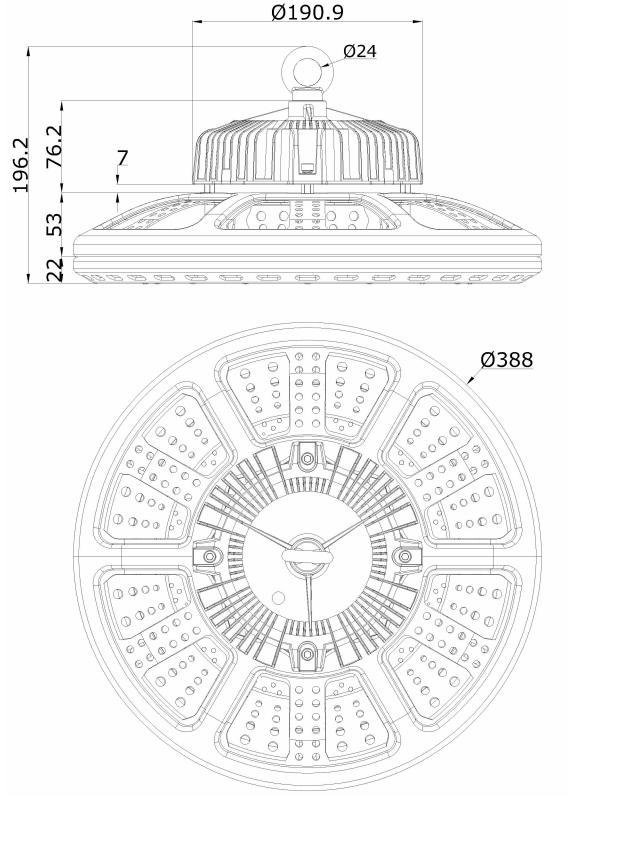

Φ388.0*201.5mm

Voltage

AC 85-265V 50/60Hz

Driver

Non-isolated inside

Efficiency

 >90.5%

Color temperature

2700K-6500K

CRI Ra

  70

Beam angle

45° 60° 90° 120°

PF

0.978

Color tolerance

7dB

Insulating resistance

4MΩ500V DC

Working Lifetime(Hour):

50,000,

IP Rating:

 IP65



Packing Details



Package Way

EPE+Carton

Package Sizemm

L440*W440*H210

Quantity

1 PCS/Carton

N.W(KG)/ G.WKG

4.6kg/5.2kg







Instruction Manual

1、Make sure the power has been turned off before maintenance.

2、Clean the lens cover regularly to maintain high transmission of light.
3、Clean up the dust from the reflector and heat sink regularly to keep sound heat dispersion.
4、Be careful not to use water or corrosive solution for cleaning, preferably with a dry cloth.
5、When install or replace power supply, directly open the back cover with a screwdriver, then re-move the power supply. There are three-core cable of AC power, red corresponds to the power of“L”, blue to “N”, and green or yellow to “G ”
